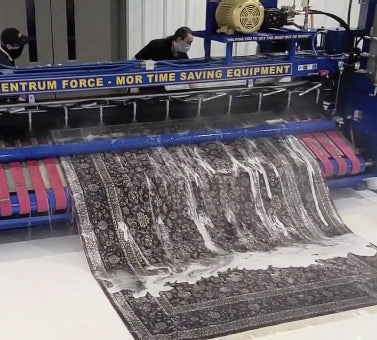

This is the 16’ wide version of the MOR Rinse-Wringer. Using highly efficient spray jets and precision wringer rollers, this machine thoroughly rinses and extracts floor or tub washed rugs leaving them ready for the drying room.
Product Name: MOR 16' Rinse-Wringer
Machine Dimensions: 66” wide X 232” long X 82” tall with a load height of 32” off the floor to the conveyor belt.
Weight: Approx 13,500 lbs
Electrical Requirements: 230 volt 3 phase power
With pressure boost pump: 100 amps
Without pressure boost pump: 30 amps
Electrical Controls: Can be ordered with the electric on the left or the right side.
The operation buttons are mounted on the electrical cabinet.
Water Supply: 20 GPM is required
The inlet of the pump is 1” NPT.
There are 2- 4” NPT couplings for drains.
One on each end of the machine, these will have to be plumbed to a drain on location.
Air Supply: An air compressor is required to compress the wringer rolls and also separate the wringer rolls. Need to maintain 100 PSI of air to maintain the correct compression.
Need replacement parts? Call our customer service line at 1-517-857-4774. Our representatives can help you get back in business fast!
